Place of Origin : Shandong, China
Brand Name : OSETMAC
Condition : New
Machine Type : Cut-off Saw
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Marketing Type : Ordinary Product
Warranty of core components : 1 Year
Core Components : Motor
Warranty : 1 Year
Weight (KG) : 460 KG
Key Selling Points : Long Service Life
Showroom Location : United States, Viet Nam, Tajikistan, Malaysia
Applicable Industries : Hotels, Machinery Repair Shops, Farms, Retail, Construction works

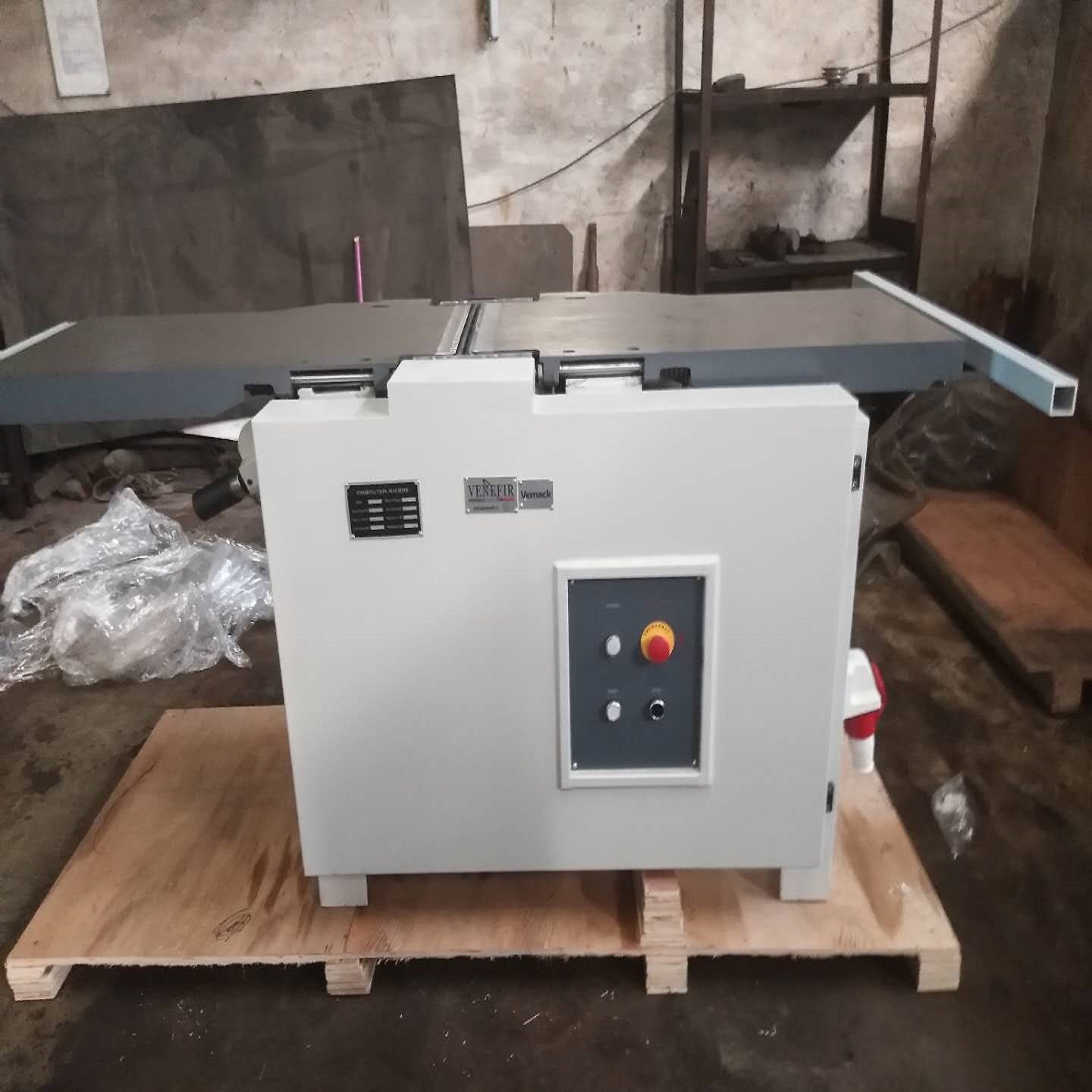

Name : Combination machine
Function : 3 functions planner+ thicknesser+mortiser
After-sales Service Provided : Free spare parts
After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location : Thailand, None
Packaging Details : WOODEN CASE PACKING stretch film
Port : QINGDAO PORT
Supply Ability : 1000000 Set/Sets per Year
Price : $3,400.00/sets 1-49 sets
Main Technical Parameters | ||||||
Model | MX5400C | |||||
Demension | 1920MM*770MM*960MM | |||||
N.W | 420KG | |||||
G.W | 467KG | |||||
1.Surface Planer | ||||||
Working Table Size | 400mm*1800mm | |||||
Cutter Shaft Rotating Speed | 5700r.p.m | |||||
Cutter Shaft Dia | 70mm | |||||
Q.ty of Knifes | 3n° | |||||
Knifes Size | 400mm*25mm*3mm | |||||
Max Planning Depth | 4mm | |||||
2.Thicknesser | ||||||
Working table | 400mm*760mm | |||||
Feeding speed | 7m/min | |||||
Max Working Height | 220mm | |||||
Mini Working Height | 4mm | |||||
Cutter Shaft Speed | 5700r.p.m | |||||
Motor Power | 3kw*1motor | |||||
3.Mortisier | ||||||
Worktable Dimension | 470mm*280mm | |||||
Grosswise Stoke | 150mm | |||||
Portrait Stroke | 120mm | |||||
Vertical Stroke | 100mm | |||||
Diller Shaft Dia. | 16mm | |||||
Rotating Speed | 5700r.p.m. | |||||
Max Mortisering Depth | 65mm |
![]() |
